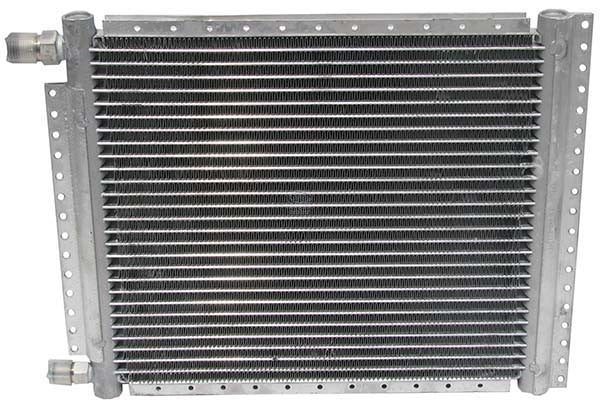

This is an aluminum parallel flow condenser that is aluminum(not painted). The condenser has mounting holes across the top, bottom, and on each end. The condenser has a very sturdy design that can be used in any automotive or agriculture application.
Core size: 9" tall x 16-1/2" wide x 7/8" thick
Overall condenser size: 10" tall x 20" wide
The condenser has two male o-ring fittings:
Top: #8 Male insert (3/4"-16)
Bottom: #6 Male insert (5/8"-18)
The condenser can be used with R-12 or R-134a refrigerants.
The condenser can be installed with the fittings exiting on the passenger or driver side.
Weight: 20.0 lb
