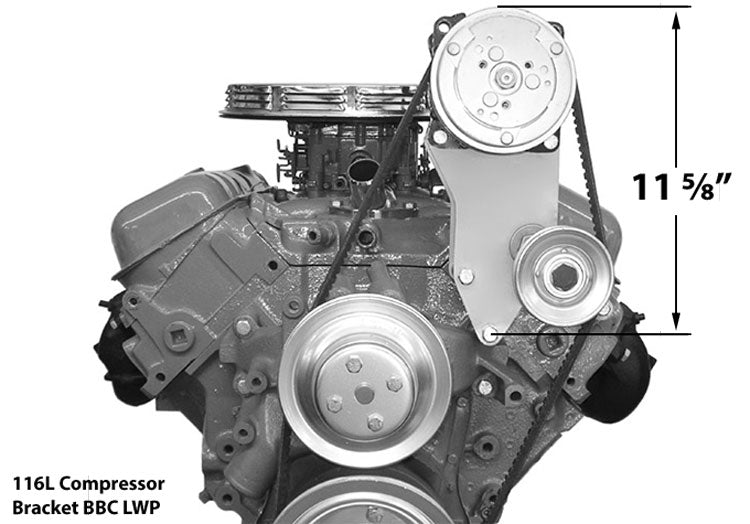

This bracket will sit above the intake manifold for vehicles with plenty of hood clearance. Long water pump big block Chevy
Bracket sits on the driver side, includes all mounting hardware, and idler pulley.
This bracket is designed to be used with the factory alternator mount, eliminating the need to purchase both brackets. The compressor belt runs in the factory A.C. groove and the bracket is complete with idler assembly.
Brackets require double groove water pump, triple groove crank and single groove power steering pulleys. If no p/s then double groove water and crank pulley. The bracket is designed to mount Sanden 508 / SD5H14 and 709 / SD7H15 compressors.
Metal finish, needs to be painted.
A short water pump will sit up against the timing chain cover, a long water pump will have a one inch gap between the rear of the pump and the timing chain cover.
Weight: 7.0 lb
