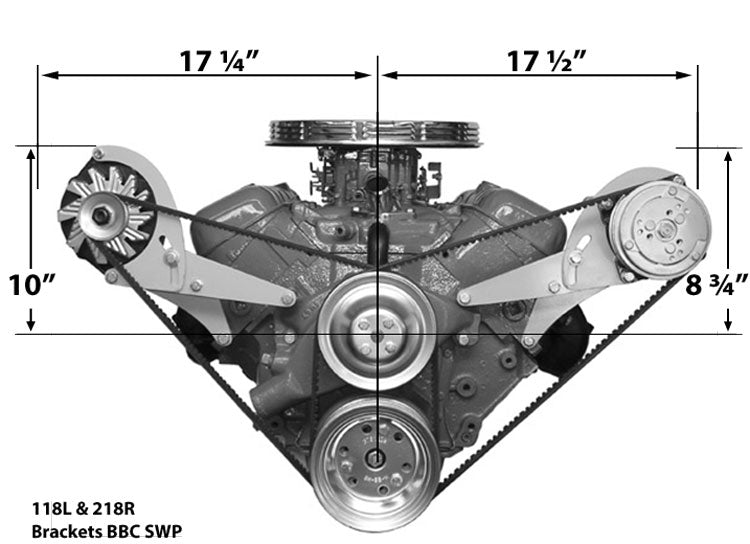

118L BBC Short Pump Bracket Low Profile Driver Side

118L BBC Short Pump Bracket Low Profile Driver Side

Regular price $108.00 USD
Regular price $0.00 USD Sale price $108.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:118L-01

View full details

Engineered for low hood applications.  Works great on any vehicle with a wide engine compartment - Trucks, 50-60's cars, etc.  Bolts to the heads and water pump. Same as 118R and 218L except for opposite sides.

Alternator bracket available via option below. Alternator Bracket Part# is 218R. Alternator Bracket is not included by default.

Brackets require double groove water pump, triple groove crank and single groove power steering pulleys. If no p/s then double groove water and crank pulley. The bracket is designed to mount Sanden 508 / SD5H14 and 709 / SD7H15 compressors.
Metal finish, needs to be painted.

A short water pump will sit up against the timing chain cover, a long water pump will have a one inch gap between the rear of the pump and the timing chain cover.

Engineered for low hood applications.  Works great on any vehicle with a wide engine compartment - Trucks, 50-60's cars, etc.  Bolts to the heads and water pump.

Alternator bracket available via option above. Alternator Bracket Part# is 218L. Alternator Bracket is not included by default.

Weight: 7.0 lb
