122L BBC Long Pump Bracket Low Profile Driver Side

122L BBC Long Pump Bracket Low Profile Driver Side

Regular price $108.00 USD
Regular price $0.00 USD Sale price $108.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:122L

View full details

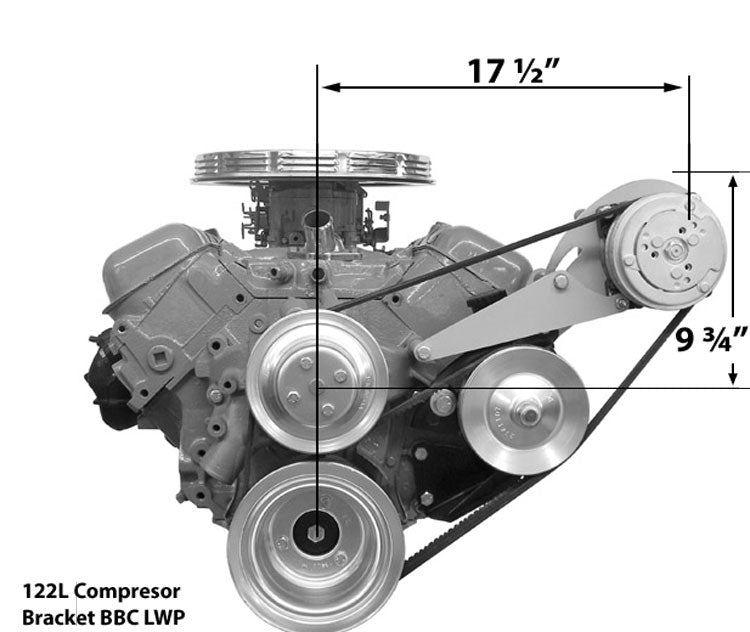

This bracket is low profile for vehicles with little hood clearance. Long water pump Big block Chevy. Tall valve covers are ok.
Bracket sits on the Passenger side, includes all mounting hardware.

.

Designed for cars with low hood clearance - Camaros, Chevelles, etc. Works on any vehicle with wide engine compartment. Bolts to head and water pump.  Works with factory alternator and power steering pump.

Brackets require double groove water pump, triple groove crank and single groove power steering pulleys. If no p/s then double groove water and crank pulley. The bracket is designed to mount Sanden 508 / SD5H14 and 709 / SD7H15 compressors.
Metal finish, needs to be painted.

A short water pump will sit up against the timing chain cover, a long water pump will have a one inch gap between the rear of the pump and the timing chain cover.

Weight: 7.0 lb

  • bracket style: Low Profile
  • comtible with factory ps b: Yes
  • comtible with vortec heads: No
  • engine size: Big Block/Long Water Pump
  • instructions: 122L Instructions
  • pulley type: V-Belt
