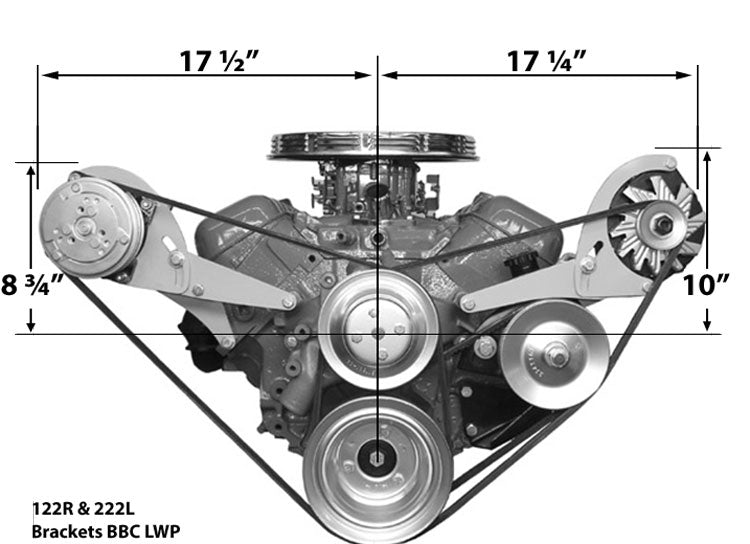

This bracket is low profile for vehicles with little hood clearance. Long water pump Big block Chevy. Tall valve covers are ok.
Bracket sits on the Passenger side, includes all mounting hardware.
Engineered for low hood applications. Works great on any vehicle with a wide engine compartment - Trucks, 50-60's cars, etc. Bolts to the heads and water pump. WILL WORK with factory power steering pump.
Alternator bracket available via option below. Alternator Bracket Part# is 222L. Alternator Bracket is not included by default.
Brackets require double groove water pump, triple groove crank and single groove power steering pulleys. If no p/s then double groove water and crank pulley. The bracket is designed to mount Sanden 508 / SD5H14 and 709 / SD7H15 compressors.
Metal finish, needs to be painted.
A short water pump will sit up against the timing chain cover, a long water pump will have a one inch gap between the rear of the pump and the timing chain cover.
Alternator bracket available via option above. Alternator Bracket Part# is 222L. Alternator Bracket is not included by default.
Weight: 7.0 lb
