137L SBC Long Pump Bracket Low Profile Driver Side

137L SBC Long Pump Bracket Low Profile Driver Side

Regular price $108.00 USD
Regular price $0.00 USD Sale price $108.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:137L

View full details

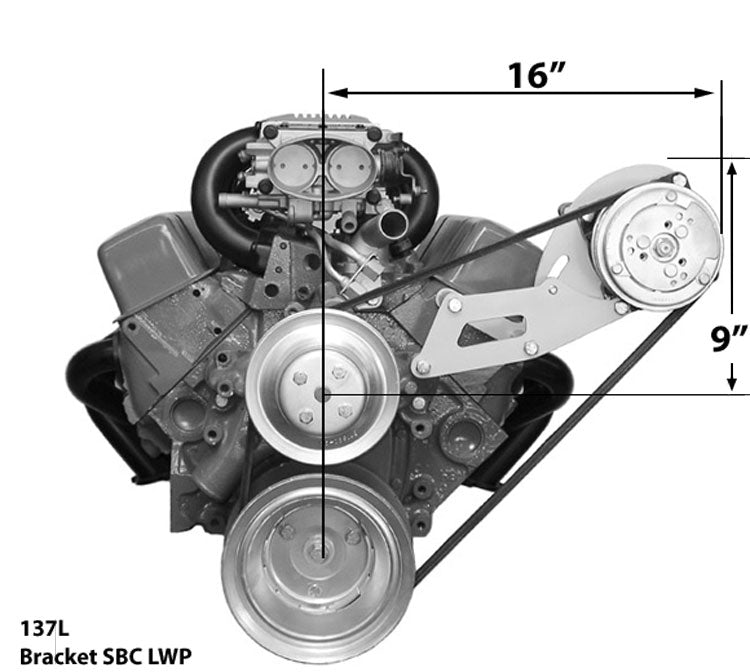

This bracket works well if you are adding a compressor to a LONG water pump application. Designed to bolt to the head and top water pump bolt only. Will not work with factory power steering pump bracket, must use our Part# 402L Power Steering Pump Bracket.

Brackets require double groove water pump, triple groove crank and single groove power steering pulleys. If no p/s then double groove water and crank pulley. The bracket is designed to mount Sanden 508 / SD5H14 and 709 / SD7H15 compressors.
Metal finish, needs to be painted.

A short water pump will sit up against the timing chain cover, a long water pump will have a one inch gap between the rear of the pump and the timing chain cover.

Weight: 7.0 lb

  • bracket style: Low Profile
  • comtible with factory ps b: No
  • comtible with vortec heads: Yes
  • engine size: Small Block/Long Water Pump
  • instructions: 137L Instructions
  • pulley type: V-Belt
