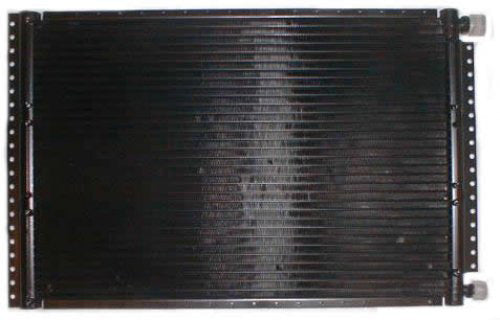

This is an aluminum parallel flow condenser that is painted black. The condenser has mounting holes across the top, bottom, and on each end. The condenser is Aluminum in color (painted).
Core size: 13" tall x 24" wide x 7/8" thick
Overall condenser size: 14" tall x 26" wide
The condenser has two male o-ring fittings:
Top: #8 Male insert (3/4"-16)
Bottom: #6 Male insert (5/8"-18)
The condenser can be used with R-12 or R-134a refrigerants.
The condenser can be installed with the fittings exiting on the passenger or driver side.
Weight: 20.0 lb
