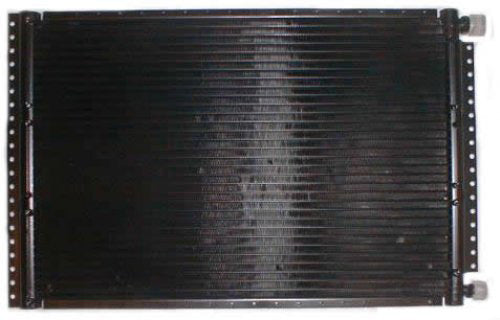

This is an aluminum parallel flow condenser designed for R-134a. The condenser has mounting holes across the top, bottom, and on each end. The condenser is black in color (painted).
Core size: 14.25" tall x 24" wide x 7/8" thick
Overall condenser size: 14.25" tall x 26 5/8" wide
The condenser has two male o-ring fittings:
Top: #8 Male insert (3/4"-16)
Bottom: #6 Male insert (5/8"-18)
The condenser can be used with R-12 or R-134a refrigerants.
The condenser can be installed with the fittings exiting on the passenger or driver side.
Weight: 20.0 lb
