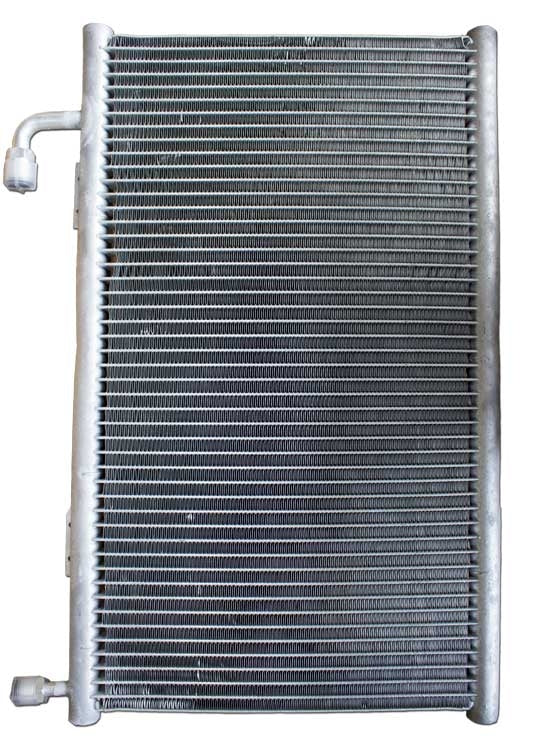

Aluminum non-painted vertical street rod parallel flow condenser. The condenser is designed to work in street rods with R-12 and R-134a refrigerant. The condenser gets mounted into the vehicle with the four mounting tabs on each corner.
Core size: 19" tall x 12" wide x 7/8" thick
Overall condenser size: 19" tall x 14" wide
The condenser has two male o-ring fittings:
Top: #8 Male insert (3/4"-16) Points down toward center of condener.
Bottom: #6 Male insert (5/8"-18) Points straight out of the condenser.
The condenser can be installed with the fittings exiting on the passenger or driver side. We do not carry the side or bottom exit tubes for this condenser.
Weight: 30.0 lb
