1950 - 1954 & 1958 - 1975 Indash A/C Heat System

1950 - 1954 & 1958 - 1975 Indash A/C Heat System

Regular price $1,194.49 USD
Regular price $0.00 USD Sale price $1,194.49 USD
Sale Sold out
Shipping calculated at checkout.

SKU:CK-5075CC

View full details

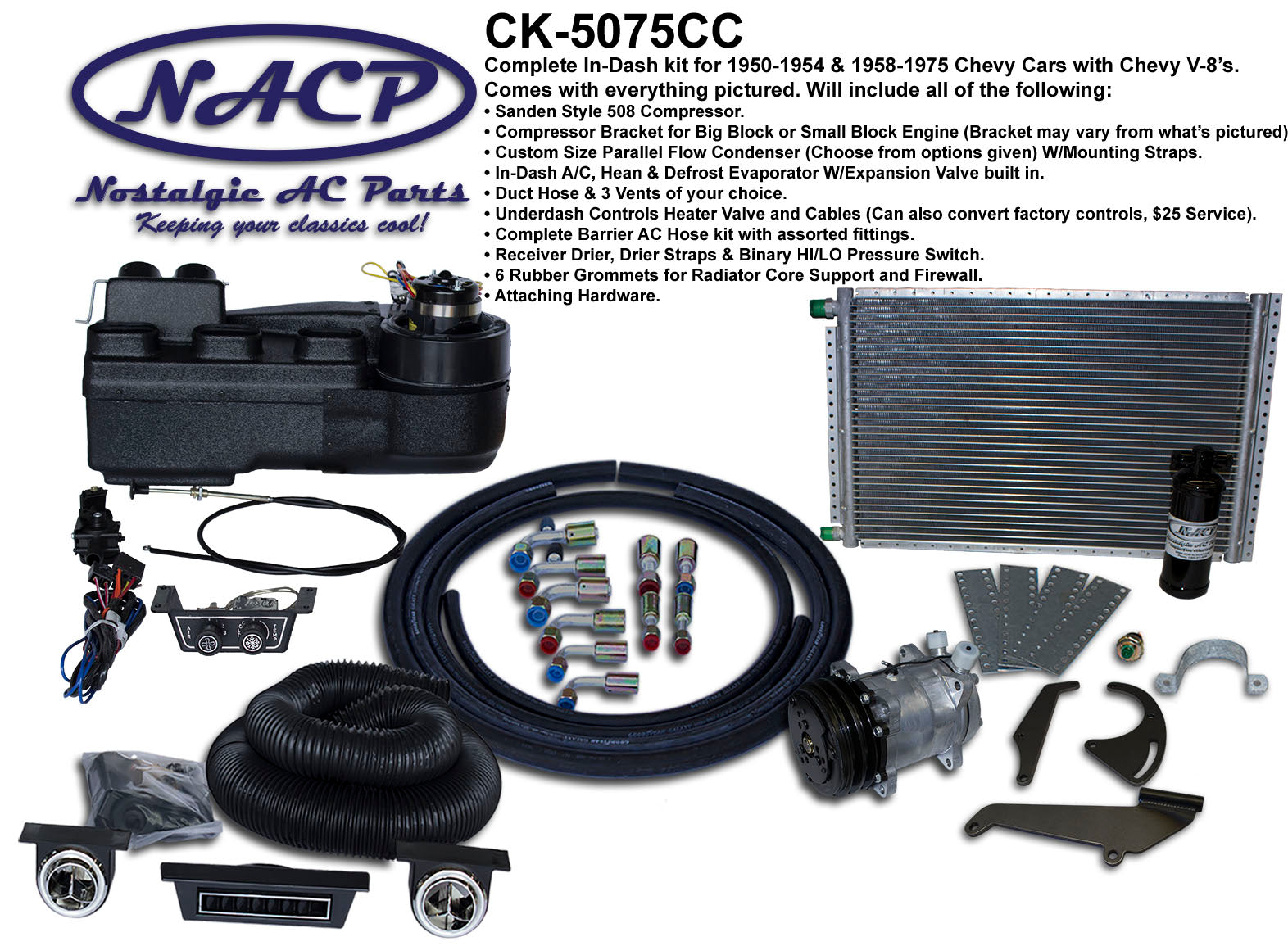

Impala Chevelle Corvette Camaro Nova complete universal A/C heat and defrost system for 1950 -1975 Chevy Cars.   This kit is designed to hide behind the dashboard, using vents in or under the dash. This Evaporator does not have vents for floor heat.

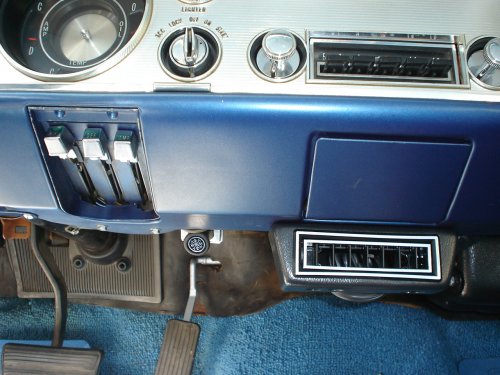

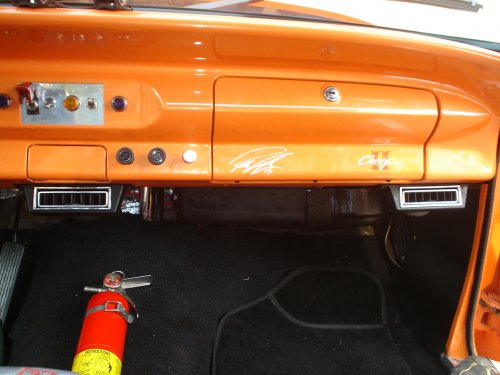

Impala Chevelle Corvette Camaro Nova complete universal A/C heat and defrost system for 1950 -1975 Chevy Cars.   This kit is designed to hide behind the dashboard, using vents in or under the dash.   This kit can integrate the factory cable operated controls, or you can use the rotary knob style controls that are included.  If you wish to use the factory control panel please see below for more information.  The kit will hook up to the factory defrost outlet under the dash, it will also hook into factory vents if your vehicle has them.  If you do not have vents, we can include aftermarket vents.  The glove box will not interfere with this system, and the firewall will not require any major modification (Firewall will need holes for the hoses).

Using your factory controls is not a problem, even if the vehicle was heat only.   You can send us your control panel to be integrated into our A/C kit.  We can adapt any original panel and have it shipped back to you in 48 hours.  The control panel will be rewired for our system, the only wiring required with this setup is an ignition, ground, and binary / compressor switch.  All the leads will be ready for you to hook up.    This kit will work on any car between 1950 - 1975.

The compressor will come with a double V-belt clutch unless a different setup is requested. Pulleys and a radiator fan are not included.  A fan and fan shroud should be used on the radiator, or a sufficient electric fan.  The setup requires a double groove water pump pulley, and a triple groove crank pulley.  Please specify in checkout if you have a long or short water pump and if the alternator is on the driver or passenger side.    A short water pump will sit up against the timing chain cover, a long water pump will have a one inch gap between the rear of the pump and the timing chain cover.  Heater hose, belt, and refrigerant are not included

Please specify in checkout if you have a long or short water pump and if the alternator is on the driver or passenger side.

Weight: 70.0 lb

  • make: Chevrolet
  • model: Car
  • year range: 1948-1955, 1956-1963, 1964-1971, 1972-1979
  • years covered: 1950-1954, 1958-1975
