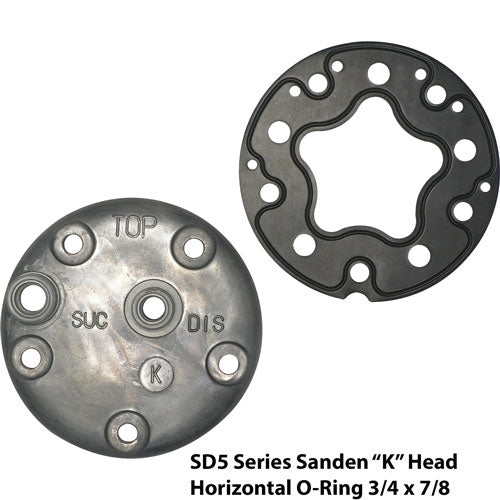

Sanden 508 / SD5H14 Compressor back (head) with Bolts. The head has O-ring fittings, 3/4"-16 and 7/8"-14 thread size that point straight out the back of the compressor. This back has five bolt holes to mount to the rear of the compressor. Any Sanden five series compressor with five bolt holes on the rear will accept this rear head. The head includes the rear gasket.
Most Sanden heads have a letter in the center of the back, NOT THE SUC / DIS or S / D under the fittings, the letter(s) are in the center of the back. These letters can be used to identify the head as well. Please email us the letter if we do not have it listed, we stock every available Sanden head.
This is a K head.
New bolts will be required if you are replacing a non K head with this one which is why they are packaged by default with this head. If you are replacing an existing K head, you can use existing bolts. If you wish to use your existing K head bolts, choose the option below to remove the bolts that come with this Head.
New bolts will be required if you are replacing a non K head with this one which is why they are packaged by default with this head. If you are replacing an existing K head, you can use existing bolts. If you wish to use your existing K head bolts, choose the option above to remove the bolts that come with this Head.
Weight: 1.0 lb
